2.2-Inch IPS TFT LCD Display 200x480 Resolution MIPI Interface 500 Nits Brightness For Clear Visuals

Brand Name : SAEF

Model Number : SFTO220SD-7273AN

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : The lowest market price guaranteed

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Product : 2.2 inch TFT display

Resolution : 200x480 Dots

Touch screen : without

Viewing Direction : IPS all viewing angles

Interface : MIPI

Pin number : 20 pins

Connection : ZIF

Surface Luminance : 500 cd/m2

Driver IC : ST7797

Operating Temp。 : -20℃ to +70℃

LED lifetime : 40,000 hours

Compliance : REACH & RoHS Compliant

Contact Now

About this item SFTO220SD-7273AN
Upgrade your project with our high-performance 2.2-Inch IPS TFT LCD Display, designed to provide vibrant visuals and exceptional clarity. With a crisp 200x480 resolution, this display delivers sharp and detailed images, making it ideal for a wide range of applications, from handheld devices to embedded electronics.
Key features include:
  • IPS Technology: Enjoy wide viewing angles and accurate color reproduction, ensuring that your display looks great from any perspective.
  • MIPI Interface: The 2.8V MIPI interface ensures fast communication and easy integration with various microcontrollers and processors, making it a versatile choice for developers.
  • High Brightness: With a brightness of 500 nits, this display is perfect for outdoor use or brightly lit environments. Your content will remain visible and vibrant, enhancing the user experience.
  • Compact Size: The 2.2-inch form factor is perfect for compact devices, allowing for efficient use of space without compromising on quality.
  • Excellent for Text and Graphics: The pixel arrangement in a 200x480 resolution display is optimized for clear text and simple graphics, making it perfect for real-time information displays, public transport information boards, and advertisements.
Whether you are designing a new product or upgrading an existing one, this 2.2-Inch IPS TFT LCD Display is engineered to meet your needs with reliability and performance. Ideal for applications in consumer electronics, IoT devices, and mobile technology.
Explore the possibilities with our advanced display solution today!

General Specifications

Item Contents Unit
LCD type 16.7M COLOR TFT TRANSMISSVIE /
Diagonal length 2.2 inch
Recommended Viewing Direction FREE O'Clock
Dot arrangement 200(R.G.B)*480 Dot
Module size (W*H*T) 23.72*57.79*2.0+/-0.1 mm
Viewing area (W*H)

--

 mm
Active area (W*H) 21.72*52.42 mm
Pixel size (W*H) 0.1086*0.1092 mm
Backlight Type LED (white 4*LED) /
Drive IC ST7797 /
Interface Type MIPI interface /

Mechanical Drawing

2.2-Inch IPS TFT LCD Display 200x480 Resolution MIPI Interface 500 Nits Brightness For Clear Visuals

Interface Pin Definition

Pin No.

Symbol

I/O

Description
1 GND P Ground
2 TP_VDD P CTP Analog power supply
3 TP_SCL I I2C Serial Clock
4 TP_SDA I I2C Serial Data
5 TP_RST I CTP RERSET TERMINAL ACITVE ” L ”
6 TP_INT O External interrupt INT to the host, It is active low when finger touching on the screen
7 NC - -
8 GND P Ground
9 MIPI-D1N I Differential data signals of MIPI interface
10 MIPI-D1P I Differential data signals of MIPI interface
11 GND P Ground
12 MIPI-CN I Differential clock signals of MIPI interface
13 MIPI-CP I Differential clock signals of MIPI interface
14 GND P Ground
15 VCI P Power supply to the internal Analog
16 IOVCC P Power supply to the internal I/O.
17 RESET I Reset signal pin
18 GND P Ground
19 LEDK P Power supply Cathode input for backlight
20 LEDA P Power supply Anode input for backlight

Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit
Operating temperature Top -20 70 °C
Storage temperature Tst -30 80 °C
Humidity RH / 90%(Max60.C) RH
Power Voltage VCI -0.3 4.6 V

DC Characteristics

Parameter

Symbol

Min

Typ

Max

Unit
Supply voltage for logic VCI 2.65 2.8 3.3 V
I/O power supply IOVCC 1.65 1.8 3.3 V
Input Current Idd

-

 TBD TBD mA
Input voltage‘H’level VIH 0.7*IOVCC

-

 IOVCC V
Input voltage‘L’level VIL 0

-

 0.3*IOVCC V
Output voltage‘H’level VOH 0.8*IOVCC

-

 IOVCC V
Output voltage‘L’level VOL 0

-

 0.2*IOVCC V

Backlight Characteristics

Item

Symbol

Min

Typ

Max

Unit

Condition
Forward voltage Vf 2.9 3.1 3.3 V If= 80mA
BL Luminance Lv - - - cd/m2
Backlight uniformity No less than 80%
Number of LED LED

-

 4 Piece
Connection mode S/P/M In parallel

-

Optical Characteristics

Item

Symbol

Condition

Min

Typ

Max

Unit

LCM Surface Luminance

 Lv -- 470 570 -- cd/m2
Contrast Ratio CR -- 900 1000 -- --
Response time Tr+Tf -- -- 35 40 msec
Color gamut S(%) -- -- -- %

Viewing angle

 Ver.+Hor

CR≧10

 -- 160 --

deg

Product Image

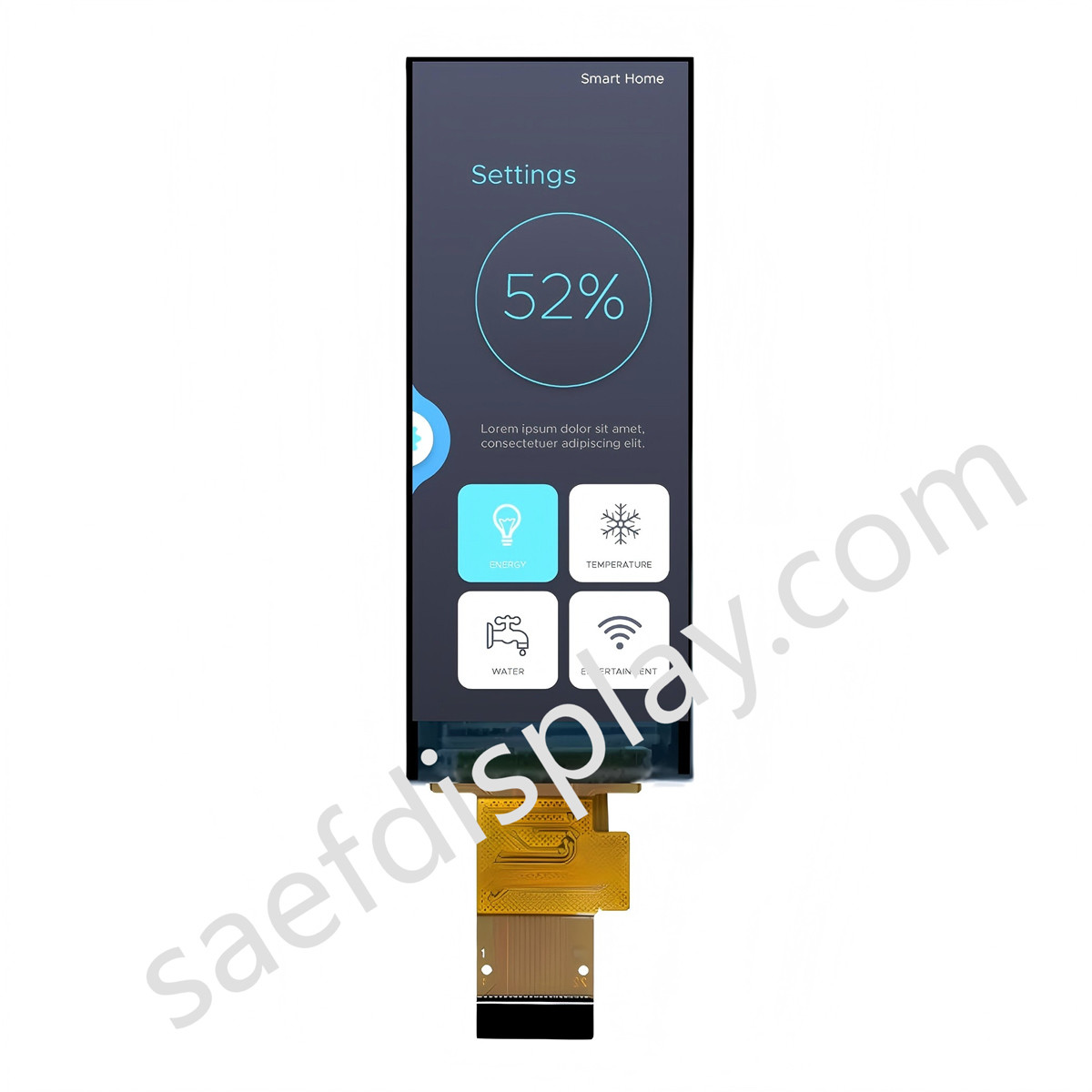

2.2-Inch IPS TFT LCD Display 200x480 Resolution MIPI Interface 500 Nits Brightness For Clear Visuals2.2-Inch IPS TFT LCD Display 200x480 Resolution MIPI Interface 500 Nits Brightness For Clear Visuals
