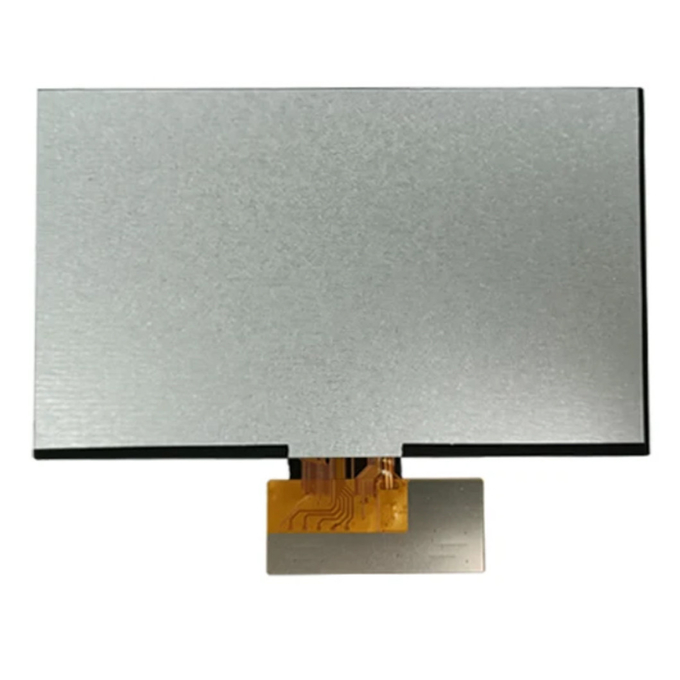

7" LVDS TFT LCD 20pins Product Introduction

Model No. : SFTO700SH-7168A10-N

The model SFTO700SH-7168A10-N is a 7-inch LVDS interface (Low Voltage Differential Signaling) color active matrix TFT LCD display supporting a resolution of 1024x600 dots. This industrial grade TFT display is an IPS type and high brightness (1000nits) LCD screen module. The module features wide viewing angle thanks to the IPS panel which is one of the most popular techniques on the market now. The module size is 165(H) × 100(V) × 5.7(D) mm; Effective area 154.2144(H) ×85.92(V) mm. This TFT monitor supports LVDS interface. With the help of anti glare display surfaces, the screen does not reflect light and maintains better image quality under sunlight, suitable outdoor application.

The power voltage ranges from 3.0V to 3.6V; typical value is 3.3V. It works within temperature range from -30 to +80℃, storage temperature ranges from -30 to +85℃.

General Specifications

No.	Item	Specification	Unit
1	Panel Size	7	inch
2	Number of Pixels	1024 × 3(RGB) ×600	pixels
3	Active Area	154.2144(H) ×85.92(V)	mm
4	Pixel Pitch	0.1506(H) ×0.1432(V)	mm
5	Outline Dimension	165(H) × 100(V) × 5.7(D)	mm
6	Pixel arrangement	RGB - stripe	-
7	Display Mode	IPS with Normally Black	-
8	Viewing Direction	ALL Viewing Direction	-
9	Display Color	16.7M	-
10	Interface	LVDS	-
11	Backlight	White LED	-
12	Brightness	1000	cd/m2
13	Drive IC	-	-
14	Operation Temperature	-30~80	ºC
15	Storage Temperature	-30~85	ºC
16	Weight	116(Typ.)	g

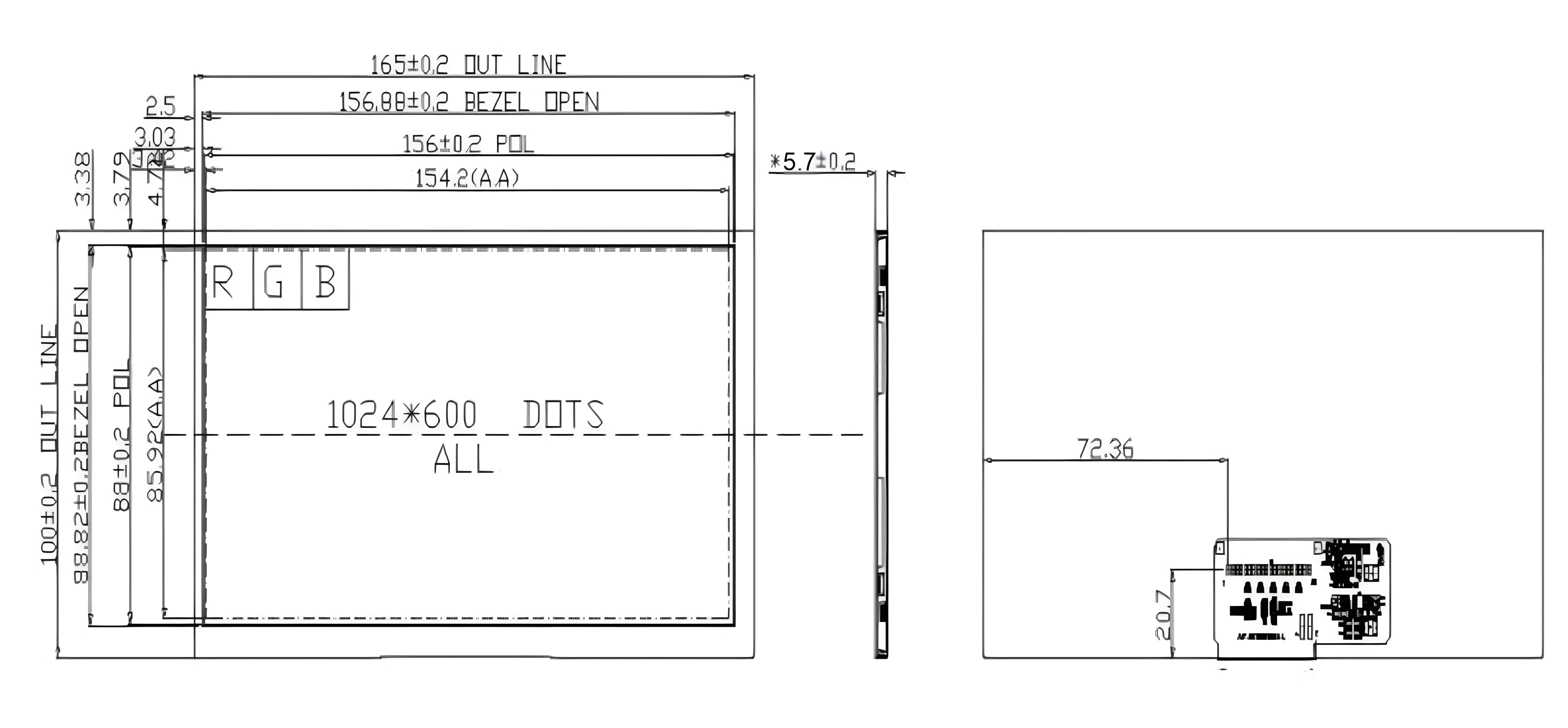

IPS TFT LCD 7" LVDS 1000nits 1024x600dots Product Drawing

7 Inch Industrial Grade TFT Display LVDS Interface 1000nits Ultra Wide Operating Temperature Range

Pin Definition

Pin No.	Symbol	I/O	Function
1	VDD	P	Power supply VDDIN=3.3V
2	VDD	P	Power supply VDDIN=3.3V
3	LED_EN	I	Power supply VDDIN(3.3~5.0V)
4	GND	P	Ground
5	RXIN0N	I	0-LVDS differential data
6	RXIN0P	I	0+LVDS differential data
7	GND	P	Ground
8	RXIN1N	I	1-LVDS differential data
9	RXIN1P	I	1+LVDS differential data
10	GND	P	Ground
11	RXIN2N	I	2-LVDS differential data
12	RXIN2P	I	2+LVDS differential data
13	GND	P	Ground
14	RX_CLKN	I	-LVDS differential clock input
15	RX_CLKP	I	+LVDS differential clock input
16	GND	P	Ground
17	RXIN3N	I	3-LVDS differential clock input
18	RXIN3P	I	3+LVDS differential clock input
19	PWM	I	Backlight brightness:apply 0.7V to 1.4V DC voltage signal
20	VLED	P	Power supply VLED=5~12V(Typ.)

Typical Operation Conditions

Item		Symbol	Values			Unit
Item		Symbol	Min.	Typ.	Max.	Unit
Digital Supply Voltage		VDD	3	3.3	3.6	V
Power Supply for LED		VLED	4.8	5	12	V
Power IC provides voltage		AVEE	-6	-5	-4.5	V
Power IC provides voltage		AVDD	4.5	5.5	6	V
Driver IC provides voltage internally		VGH	9	-	20	V
Driver IC provides voltage internally		VGL	-20	-	-9	V
Input Signal Voltage	Low Level	VIL	0	-	0.3*VDD	V
Input Signal Voltage	High Level	VIH	0.7*VDD	-	VDD	V

Backlight Specifications

Item	Symbol	Values			Unit	Remark
Item	Symbol	Min.	Typ.	Max.	Unit	Remark
Forward voltage	VF	19.6	21	23.1	V
Forward current	If	55	60	65	mA	IF=20mA/1-chip
PWM Signal Voltage	PWM_h	2	3.3	3.6	V	-
PWM Signal Voltage	PWM_l	0	-	0.5	V	-
Output PWM frequency	PWM_f	-	200	20K	Hz	-
LED enable Voltage	EN_h	2.6	3.3	3.6	V	-
LED enable Voltage	EN_l	0	-	0.4	V	-

Optical Specifications

Item		Symbol	Condition	Values			Unit
Item		Symbol	Condition	Min.	Typ.	Max.	Unit
Viewing angle		Θu	CR≥10	-	85	-	degree
		ΘD		-	85	-
		ΘL		-	85	-
		ΘR		-	85	-
Response time		TON+TOFF	θ=Φ =0 °	-	19	25	ms
			Normal
			viewing
			angle
Contrast ratio		CR		400	500	-	-
Luminance		L			1000	-	cd/m²
Luminance uniformity		YU		70	75	-	%
Color chromaticity (CIE1931)	White	WX		0.276	0.296	0.316
		WY		0.302	0.322	0.342
	Red	RX		-	-	-
		RY		-	-	-
	Green	GX		-	-	-
		GY		-	-	-
	Blue	BX		-	-	-
		BY		-	-	-
