7" Inch TFT LCD Touch Module IPS Full Viewing Angle 1024x600 dots with RGB Interface with PCAP
7 inch TFT LCD Touch Module Description
SAEF Technology SF-TC700B-8619A-CT3/CT4 is a 7”inch IPS type full viewing angle TFT LCD Display with resolution of QVGA 1024x600 pixels. It is with Capacitive Touch Screen(CTP), both black color and white color cover glass available.
This LCD module is has outline dimension of 182.5*151*5.38 mm, and AA size of 154.21x85.92 mm. This 7" TFT LCD is with PCAP(Capacitive Touch Screen). SF-TC700B-8619A-CT3 is with white cover glass, and SF-TC700B-8619A-CT4 is with black cover glass. The LCM interface is with RGB interface, 50 pins. The CTP interface is I2C. SF-TC700B-8619A-CT3/CT4 is with 320cd/m2 (nits) surface brightness, this LCD Display Module can be operating at temperatures from–10℃ to +50℃.
| Keywords: | 7" Inch TFT LCD Touch Module | Touch Screen: | PCAP(Capacitive Touch Screen) |
| Resolution: | 1024x600 | Cover Glass Dimension: | Optional For Customization |
| LCM Interface: | RGB Interface | Surface Luminance: | 200 Cd/m2 |
| LED Lifetime: | 40,000 Hours | Pins: | 50 PINs |
| Viewing Direction: | Free(80/80/80/80) | CTP Interface: | I2C |
| Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
Application
This 7” TFT LCD module is widely used in measuring equipment, medical device, home automation, access security system, supermarket price tag, and household appliances, GPS device, etc.
Product Advantages
1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3. Wide Temperature of Top of -20℃ to +70℃ and high quality level for industrial applications.
4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5.Price competitive solution with good quality among the same kinds in the LCD industry.
6.Easy to install and easy to maintain.
Quality assurance
1.For every piece, we have 3 times 100% test to ensure good quality.
2.The QA manager has been in the LCD industry for more than 14 years. The key manufacturing and QA operators have been in the LCD industry for more than 7-8 years. Our team are all very professional and experienced in the LCD filed to ensure quality for customers.
Customer Service
1.Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2. Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4. One-year warranty for our LCD display after delivery. All the defects can be returned and replaced within warranty period.
5. Buyer can dispatch technician to our factory for free training before delivery.
6. We’re focusing on creating values for customers. For essential technical or commercial support, we will arrange con-call meeting, online technical service, or at-site local help, etc to meet customer different needs.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
7 inch TFT LCD Touch Drawing
LCM Drawing

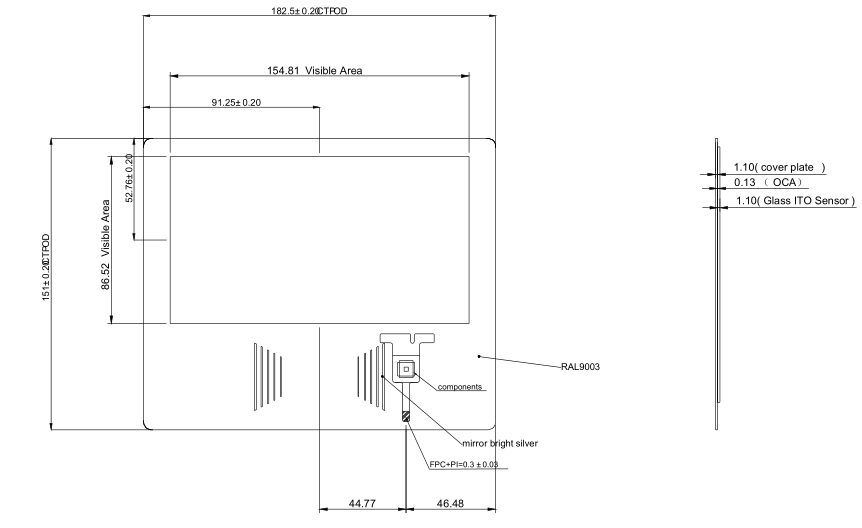

CTP Drawing

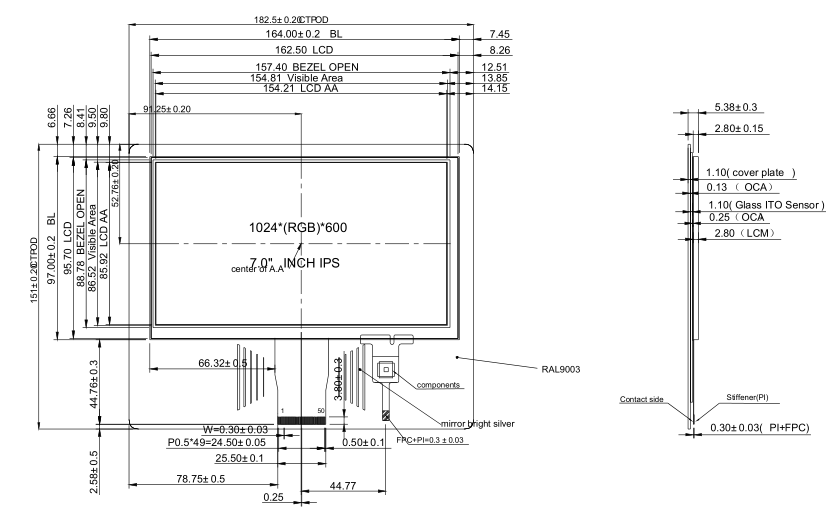

LCM+CTP Drawing
LCM interface
CTP interface
7 inch RGB TFT Resistive Touch Display Module Real Product Photos
SIMILAR PRODUCTS PROPOSED FOR YOUR DESIGN
| SIZE | DETAIL | OUR P/N |
| 7 inch | 800x480 Landscape type, with control board | SF-TC700I-9239C-T |
| 7 inch | 1024x600 Landscape type, with or without CTP, RGB interface | SF-TC700B-8619A-N/CT |
| 7 inch | 1024x600 Landscape type, with or without CTP, MIPI interface | SF-TO700B-8857A-N/CT |
| 7 inch | 1024x600 Landscape type, with or without CTP, RGB interface | SF-TO700B-8834A-CT |
